Questions on Triaxial compression tests procedure



To all geomechanics expert,

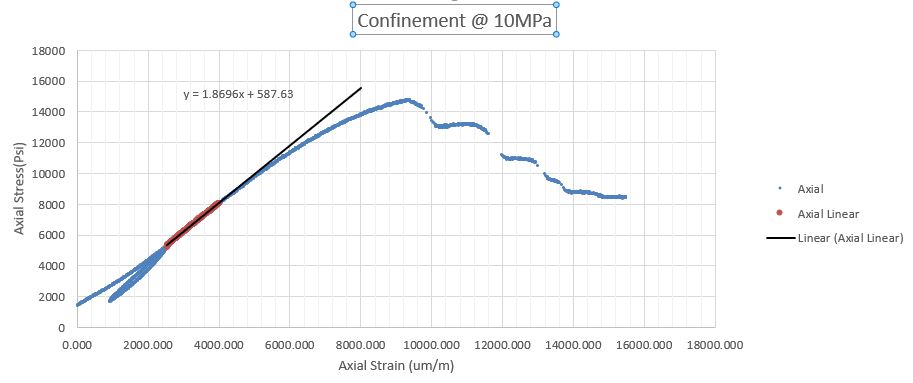

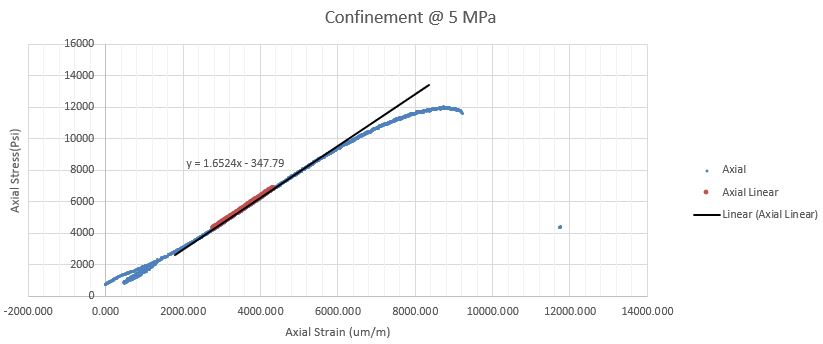

My name is Prapun Sooksawat, I am an reservoir engineer working in a new geomechanics team in Thailand national oil and gas company. I have got the Triaxial compression tests results from an unknown laboratory. In this work, for each depth, a triplet of plugs was taken each of which tested at different confinement( 5 Mpa, 10 Mpa, 20 Mpa) in order to establish the failure envelope. According to the axial stress/strain plot, I wonder why all tests were performed with unloading axial stress at early period?
I normally found this procedure only in a multi stage triaxial test (MST) when number of core is limited but still require multiple confinement pressures.
However, in this work, there are already 3 cores so we can loading until reaching yield point without any unloading of axial force?
Your comments and suggestions are highly appreciated

Prapun S.

1 comment
40 views

Permalink

Tag

Comments

02-10-2019 04:28 AM

​Hi Prapun,
The main objective of performing unloading tests in the single-stage triaxial testing is to obtain Unloading Young's modulus (not for failure envelope), which is different from the one from loading stage. Some believe that unloading Young's modulus is more representative for rock. However, it really depends on your application.

Hope this helps.

Guodong
