There is a class of wells in Abu Dhabi that has been dying quietly for years. They are the attic wells—completed high in the structural crest of Bab, Rumaitha, and other gas-cap fields, drilled to capture the last oil before the advancing gas front arrived. For a time they produced well. Then gas cusped into the perforations, rates collapsed, and the wells were choked back or shut in. The surface facilities could not handle the gas. The gas-oil contact was too precious to destabilize. And so the attic was abandoned, not because it was empty, but because the gas cap had claimed it.
This is not a unique story. Across ADNOC's mature gas-cap fields, increased withdrawal rates and decades of pressure depletion have accelerated gas breakthrough into high-structure producers. The result is a growing inventory of shut-in or marginal attic wells that still sit above billions of barrels of bypassed oil. The industry knows how to drill lower, infill tighter, and accept the loss of the crest. It is less practiced at using the gas cap itself as the tool that recovers what it displaced.
Two complementary technologies—barely deployed in the UAE but proven elsewhere—offer a different path. Huff-n-puff gas injection, cyclic injection of CO₂ or enriched natural gas into existing attic producers, can re-pressurize the near-wellbore region and miscibly mobilize stranded oil. Downhole gas separation, handling produced gas at the source before it overwhelms surface facilities, can keep attic wells flowing even as gas co-produces. Together, they could reactivate a significant fraction of Abu Dhabi's shut-in attic inventory without new drilling.
The Gas Cap Paradox
The carbonate fields beneath Abu Dhabi's desert and offshore waters were discovered with primary gas caps or developed secondary caps as production depleted the oil column. Bab, Rumaitha, Asab, and the deeper structures of the offshore Thamama trend all share this architecture: a gas leg above, an oil leg below, and a gas-oil contact that has migrated downward over decades of withdrawal.
Water injection and gas injection have sustained reservoir pressure and enabled the high recovery factors for which ADNOC is justly proud. But the physics of gas mobility is unforgiving. Gas is twenty to fifty times more mobile than oil in fractured carbonates. As the oil column thins near the crest, any significant drawdown causes gas to cone or crest into wells completed near the original gas-oil contact. Attic wells—drilled specifically to capture the last oil before the gas arrives—become the first casualties.
The standard response is defensive. Choke back the well. Shut in the upper perforations. Drill replacement wells lower in the structure. Each of these accepts the loss of attic oil as inevitable. Choking preserves the gas cap but abandons the well's purpose. Shutting in upper perforations strands oil in the tight matrix between fractures. Infill drilling is expensive, delays production by years, and simply moves the problem downward as the gas-oil contact continues to advance.
What is rarely considered is whether the attic well itself—already completed, already connected to surface, already positioned in the bypassed oil—can be repurposed as both injector and producer in a cyclic sequence. The gas that killed the well could be the gas that resurrects it.
Huff-n-Puff Gas Injection—Cyclic EOR for Attic Wells
Huff-n-puff gas injection, also called cyclic gas injection or single-well miscible flooding, is conceptually simple. Inject gas into a producer. Shut in to soak. Return to production. Repeat. Unlike continuous gas flooding, which requires dedicated injectors, pattern configuration, and years to see response, huff-n-puff is self-contained, fast-cycle, and uses existing completions.
The gas—CO₂ or enriched natural gas—achieves miscibility with reservoir oil at the pressures and temperatures typical of Abu Dhabi's attic zones. The miscible front swells oil volume, reduces viscosity by a factor of two to five, and re-pressurizes the near-wellbore region. Oil that was immobile in the tight matrix between fractures becomes mobile and flows back when the well returns to production.
The distinction from continuous gas flooding matters practically. Continuous flooding requires years of pattern development, dedicated injectors, and surface infrastructure sized for steady-state gas volumes. Huff-n-puff uses the attic well itself. It operates in weeks-to-months cycles rather than years. It injects gas in batches, so surface facilities can be sized for intermittent rather than continuous duty. And critically, it can use captured CO₂ in sectors where pipeline infrastructure for continuous flood does not reach.
ADNOC's Al Reyadah carbon capture facility produces roughly eight hundred thousand tons of CO₂ annually for enhanced oil recovery. Much of this feeds continuous CO₂-EOR at Bab and Rumaitha. But not every sector has pipeline access. Huff-n-puff could consume smaller CO₂ volumes in attic wells that are currently shut in, creating value from stranded gas while proving the concept for wider application.

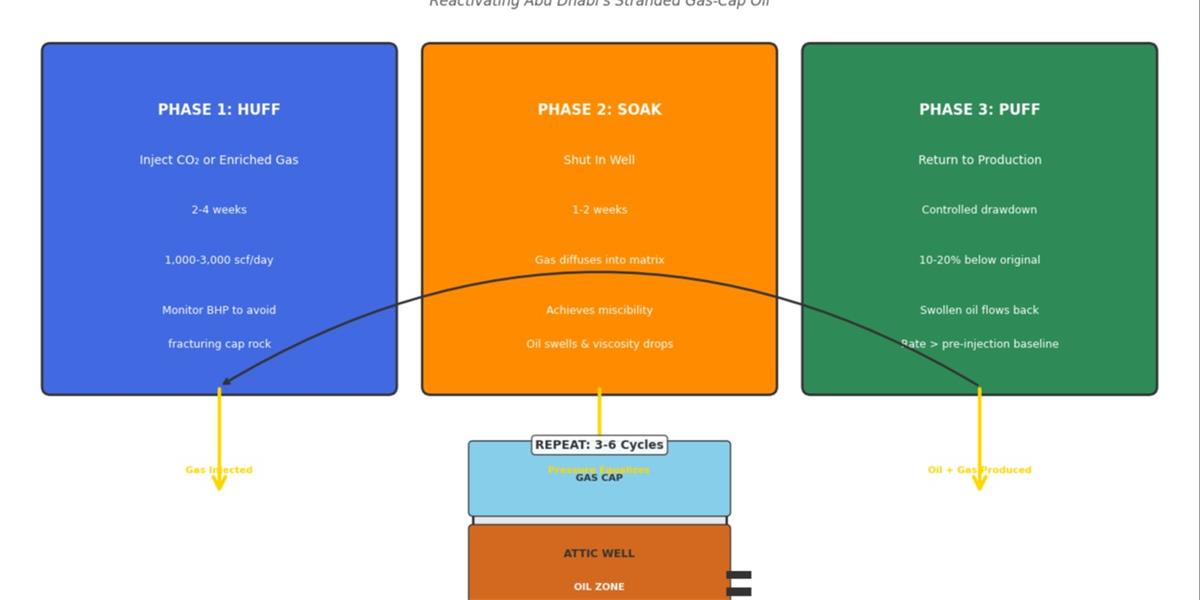

The cycle design for Abu Dhabi's carbonates would be field-specific, but a representative sequence is instructive. The huff phase injects CO₂ or enriched gas at one thousand to three thousand standard cubic feet per day for two to four weeks, monitoring bottomhole pressure to avoid fracturing the cap rock. The soak phase shuts the well in for one to two weeks, allowing gas to diffuse into the matrix, achieve miscibility, and swell the oil phase. The puff phase returns the well to production at a controlled rate, typically ten to twenty percent below the drawdown that originally caused gas cusping. The oil rate should peak above the pre-injection baseline as swollen, mobilized oil flows back. Three to six cycles per well are typical before diminishing returns set in, with each cycle potentially recovering five to fifteen percent of the remaining attic oil in the drainage radius.
Field evidence from the Permian Basin, Alberta's Cardium Formation, and increasingly from Chinese carbonate fields demonstrates that huff-n-puff CO₂ can recover fifteen to thirty percent of the original oil in place in the cyclic drainage volume. Abu Dhabi's attic wells have not been tested yet. The mechanism, however, is identical: miscible gas, fractured carbonates, bypassed oil in the matrix, and a wellbore already in position.
Downhole Gas Separation—Handling Gas at the Source
Even with huff-n-puff, some gas production is inevitable. The gas cap is still present. Solution gas liberates as pressure declines. And the cyclic process itself introduces gas into the near-wellbore region that will co-produce with oil during the puff phase. If surface facilities constrain production, the attic well remains limited regardless of how much oil the huff-n-puff mobilizes.
Downhole gas separation addresses this constraint at its origin. Rather than allowing all produced gas to surface—where it overwhelms separators, compressors, and gas handling infrastructure—seventy to ninety percent of the gas is separated in the wellbore and reinjected into the formation or vented below the production packer.
Two technologies dominate. Gravity-based separators exploit the density difference between oil and gas in a downhole chamber, allowing gas to rise and oil to fall before either reaches the pump. More advanced systems use centrifugal or membrane separation integrated with electrical submersible pumps or progressing cavity pumps, actively splitting the phases downhole.
The integration with huff-n-puff is elegant. During the puff phase, downhole separation handles the gas that co-produces with mobilized attic oil, preventing surface facility overload. Separated gas can be reinjected into the same wellbore below the production packer, maintaining gas cap pressure while oil is produced above. This creates a closed-loop system: inject gas during huff, produce oil during puff, separate and reinject gas during puff, repeat. The surface facilities see primarily oil, not gas. The gas cap sees pressure maintenance, not depletion.
Downhole gas separators are commercially mature, offered by major artificial lift providers and deployed extensively in the Gulf of Mexico and North Sea where platform gas handling constraints are acute. Offshore Abu Dhabi—particularly the artificial island platforms at Upper Zakum and the super-complex infrastructure at Umm Shaif—has the space, power, and technical capacity to integrate these systems with existing lift infrastructure. The onshore fields at Bab and Rumaitha, with their existing gas lift networks and wellhead compression, are equally suitable for retrofit.
Where ADNOC Should Pilot This
Not every attic well is a candidate, and the risks of destabilizing the gas-oil contact for the broader field are real. But Abu Dhabi has ideal conditions for disciplined piloting.
Bab onshore is the most logical starting point. The field already hosts CO₂-EOR operations in some sectors, meaning gas injection infrastructure, surveillance systems, and operational familiarity are mature. Adjacent attic wells—shut in due to gas cusping but with intact casing and smart completions—could host huff-n-puff pilots without interfering with lower-structure production. Bab's Maximum Reservoir Contact wells, with their multiple laterals and zonal isolation capability, are particularly suited to cyclic injection in one zone and production from another.
Rumaitha offers a second candidate. As an early CO₂-EOR adopter, the field demonstrates ADNOC's willingness to experiment with gas-based recovery. Some Rumaitha attic wells have complex gas-cap management histories; huff-n-puff could serve as a lower-risk alternative to additional continuous gas injection in sectors where the gas-oil contact is already precarious.
Asab and the offshore structures provide progressively more challenging but higher-impact options. Asab's mature waterflood has documented gas-cap encroachment and excellent surveillance, but lower reservoir pressure may require pre-pressurization before huff-n-puff cycles begin. Offshore, the gas handling constraints are most acute—making downhole separation most valuable—but platform space and DGS-ESP integration complexity require careful engineering.
The pilot design should be controlled and monitored. Three to five attic wells in Bab or Rumaitha, selected for documented gas cusping, shut-in status, and intact smart completions. CO₂ from Al Reyadah or lean gas from field processing, screened for miscibility with attic oil. Downhole separators retrofitted to one or two wells, with dual-zone completions enabling simultaneous production and reinjection. Time-lapse saturation logs, pressure transient analysis, and gas-oil contact tracking to confirm attic oil mobilization without destabilizing the broader field. And critically, integration with ADNOC's Panorama Digital Command Center, using machine learning to optimize huff duration, soak time, and puff rate based on real-time pressure and production data.
The Economic and Strategic Case
The capital efficiency argument is immediate. Huff-n-puff requires no new wells. It uses existing completions, wellheads, and—with modest gas injection tie-in modification—existing infrastructure. Downhole gas separation adds two hundred to five hundred thousand dollars per well for retrofit, less than a single workover rig intervention, and provides continuous benefit rather than a one-time treatment. Combined, the per-well investment is five hundred thousand to one million dollars, with payback in six to eighteen months if attic oil rates recover from one hundred barrels per day to four hundred or more.
The gas balance argument is equally important. Every attic barrel recovered via huff-n-puff is a barrel that does not require new infill drilling or additional lower-structure gas injection. CO₂ huff-n-puff sequesters carbon while producing oil, generating dual credit for ADNOC's decarbonization targets. Downhole gas separation and reinjection preserves gas cap pressure, reducing the volume of sales gas or imported gas needed for pressure maintenance across the field.
The portfolio argument seals the case. Attic oil across ADNOC's gas-cap fields could total five hundred million to one billion barrels. Huff-n-puff and downhole separation, applied to twenty to thirty percent of attic wells, could recover fifty to one hundred million barrels at a fraction of greenfield development cost. This is not incremental recovery theory. It is stranded asset reactivation at scale.
The Risk—and Why It Is Worth Taking
The technical risks are specific and manageable. Gas injection into attic wells, if poorly controlled, could fracture the cap rock or accelerate gas-oil contact advancement into lower-structure producers. Mitigation: conservative injection rates, real-time bottomhole pressure monitoring, and zonal isolation via smart completions. Downhole gas separation efficiency varies with gas volume fraction, water cut, and pump intake conditions; pilot wells must be screened for suitable flow regimes. And huff-n-puff in carbonates with high fracture intensity may channel gas preferentially through fractures rather than matrix, reducing sweep efficiency. Mitigation: cycle optimization using pressure transient analysis, and candidate selection favoring matrix-dominated attic zones rather than fracture corridors.
The economic risk is gas availability and price. If CO₂ supply is interrupted or lean gas prices spike, huff-n-puff economics weaken. But the batch nature of cyclic injection means exposure is limited per cycle, unlike continuous flooding where gas supply must be guaranteed for years. The modular, well-by-well nature of huff-n-puff allows operators to pause, redirect gas, or resume without field-wide consequences.
The mitigation for all risks is the same: start small, monitor intensively, and scale only what the data supports. A five-well pilot in Bab teaches more than a fifty-well theoretical study. ADNOC has the surveillance infrastructure, the gas handling experience, and the technical partnerships to execute this with controlled risk.
A Call to Action for the Industry
Abu Dhabi's gas-cap fields are not dying. They are leaking—gas into attic wells, oil into bypassed matrix, pressure into surface constraints. The attic is not empty. It is stranded by a production philosophy that treats gas breakthrough as terminal rather than reversible.
Huff-n-puff gas injection and downhole gas separation offer a practical, low-capital, high-speed approach to recover what the gas cap displaced. No new drilling. No years of pattern development. No acceptance of structural loss. Just intelligent use of existing wells, the gas already in hand, and the recognition that the well killed by gas cusping may be the ideal candidate for gas injection.
ADNOC should pilot five to ten attic wells in Bab or Rumaitha in the next two years, comparing CO₂ huff-n-puff against lean gas, with and without downhole separation. The learning curve is short. The upside is immediate. And the playbook, once proven, applies across the Middle East's gas-cap carbonate fields—from Saudi Arabia's Ghawar to Qatar's Al Khor to Iraq's Nahr Umr.
For reservoir engineers and production engineers across the region, the question is not whether your attic wells hold oil. They do. The question is whether you will keep drilling below the gas cap to replace what you lost, or whether you will turn the gas that killed the well into the tool that resurrects it.
